Gordon Murray Broke All the Rules, McLaren F1 Redefined the Supercar

The Birth of an Icon: Gordon Murray's Vision

The McLaren F1, conceived by the legendary designer Gordon Murray, was envisioned as the ultimate driver's car. Behind this ambitious project were four key individuals at McLaren: Gordon Murray, Ron Dennis, Mansour Ojjeh, and Creighton Brown. Together, they formed the McLaren 4, driven by a singular goal-to build the best road car ever. Leveraging their collective expertise in Formula 1 racing and high-performance engineering, they set out to design a vehicle that would break all conventions and set new benchmarks in the automotive industry. Their collaboration and shared vision resulted in the iconic McLaren F1, a car that redefined what a supercar could be, and unknowingly to them, creating the standards of a new breed of cars, the hypercar.

The origins of this extraordinary project began in the late 1980s, a time when McLaren had already established itself as a dominant force in Formula 1. The success on the racetrack inspired McLaren's leadership to explore new frontiers, and the idea of creating a road car that embodied their racing ethos took shape. Murray's vision was clear: the car must offer unparalleled driving pleasure, combining blistering performance with everyday usability a feat that no other supercar had managed to achieve at the time.

Murray's original requirement list for the F1 was nothing short of ambitious:

• Must not weigh more than 1000 kilograms.
• Maximum width of 1.8 meters.
• Minimized front and rear overhangs.
• Majority of the car's mass must be between the wheels.
• Must not have any issues normally associated with mid-engined cars.
• Must survive on roads, be stable at high speeds, drivable at low speeds, and comfortable.

Interestingly, speed was never on the requirements list. Gordon Murray didn't set any specific speed goals for the F1, yet it went on to achieve the fastest car in the world top speed record, as well as the fastest 0-60 mph and 0-100 mph times ever recorded at the time. This focus on overall driving experience rather than outright speed is what made the F1 so unique and revolutionary.

These stringent requirements set the stage for a car that would challenge the norms of automotive design and engineering. The focus on minimizing weight was particularly crucial. By keeping the car's mass under 1000 kilograms, Murray aimed to achieve a level of agility and responsiveness that was unheard of in a road car. This obsession with weight savings influenced every aspect of the F1's design, from its carbon fiber construction to the selection of materials like titanium and magnesium.

Powering the Legend: Engine Specifications

One of the most critical components of the McLaren F1 was its engine. Murray's vision required an engine that was not only powerful but also lightweight and reliable. The specifications were daunting:

• At least 100 horsepower per liter.
• Minimum displacement of 5.5 liters.
• At least 550 horsepower.
• 12 cylinders.
• Redline of at least 7500 RPM.
• Naturally aspirated.
• Engine weight under 250 kilograms.
• No flywheel
• Long service intervals and reliability under race conditions.

To achieve this, McLaren turned to BMW Motorsport. Paul Rosche, BMW's renowned engine designer, took on the challenge and developed a 6.1-liter V12 engine specifically for the F1. This engine, known internally as the S70/2, exceeded all expectations. It produced a staggering 627 horsepower, far surpassing the initial requirement, and featured a redline of 7500 RPM. Weighing just 266 kilograms, the engine was a marvel of engineering that combined raw power with remarkable reliability.

BMW's involvement was a testament to the collaborative effort behind the F1. The engine's performance was not just about raw numbers; it was about delivering a driving experience that was both exhilarating and dependable. The naturally aspirated design ensured immediate throttle response and a linear power delivery, characteristics that were essential for Murray's vision of the ultimate driver's car. The F1 also featured a lack of a traditional flywheel, which allowed the engine to rev up and down more quickly, enhancing the car's responsiveness and driver engagement.

Innovations That Redefined the Supercar

The McLaren F1 was a pioneer in many aspects of automotive technology. It was the first production car to feature a carbon fiber monocoque chassis, significantly reducing weight while enhancing strength and safety. This innovation was borrowed from the world of Formula 1, where McLaren had extensive experience with carbon fiber. The use of this material was not just about weight savings; it also provided exceptional rigidity and crash protection, ensuring that the F1 was both light and safe.

The central driving position was another groundbreaking feature. By placing the driver in the middle of the car, Murray aimed to provide a more immersive driving experience. This configuration offered unparalleled visibility and balance, enhancing the driver's connection with the car and the road. The F1 was also equipped with active aerodynamics, including a rear hydraulic spoiler that adjusted based on driving conditions to optimize downforce and stability.

The gold-lined engine bay, designed for heat reflection, was one of the most talked-about features of the F1. This unique approach to managing engine temperatures showcased the team's dedication to innovation. The F1 also boasted the first large displacement naturally aspirated engine to achieve over 100 hp per liter in a production car, setting a new benchmark for engine performance.

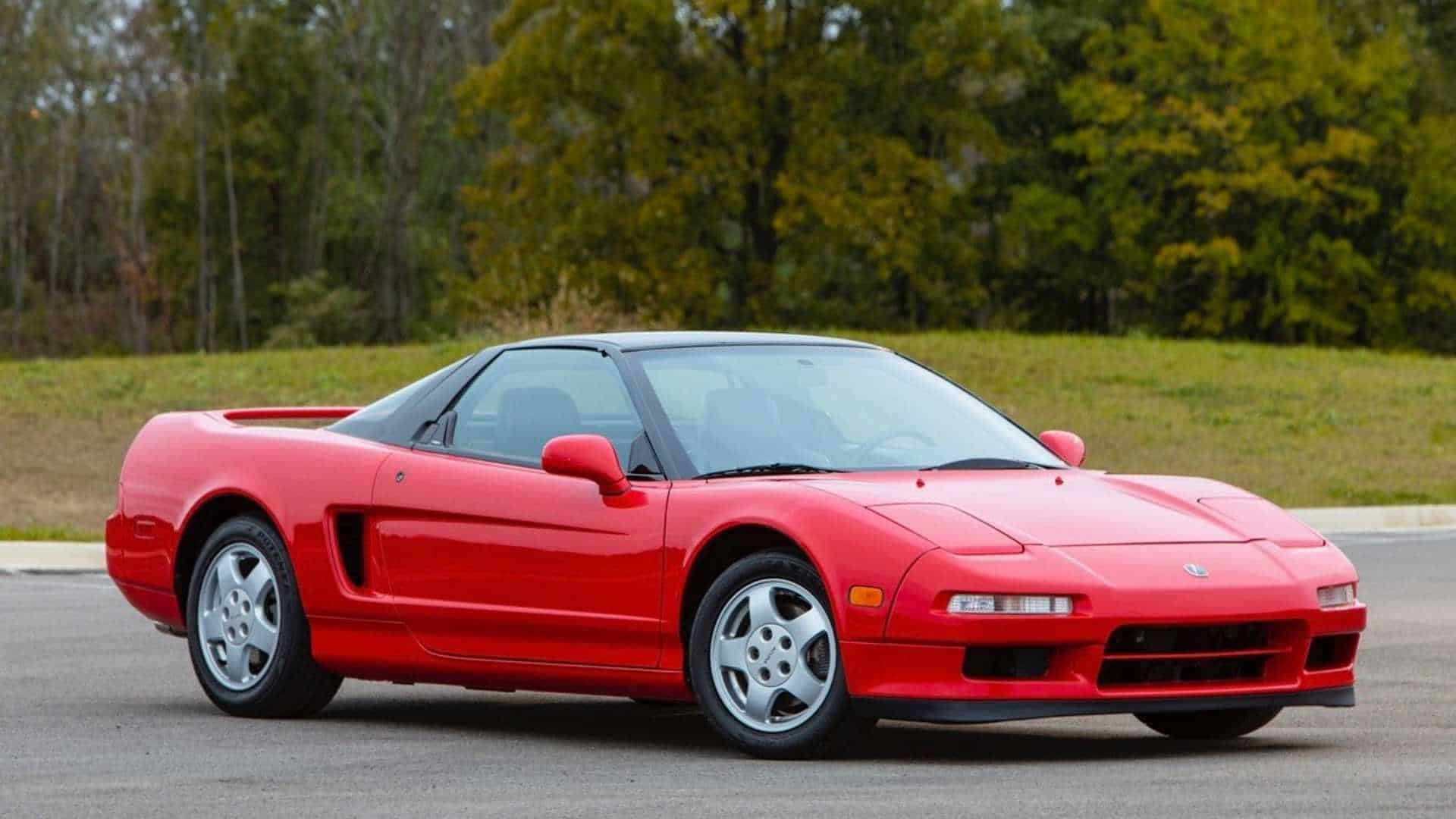

The Importance of the Honda NSX

Gordon Murray's inspiration for the McLaren F1's usability and reliability came from an unlikely source: the Honda NSX. Developed with the input of racing legend Ayrton Senna, the NSX was a revelation in the supercar world. It was fast, reliable, and-crucially-comfortable. Senna's involvement ensured that the NSX was not only a performer on the track but also a joy to drive on the road.

Murray admired how Honda managed to combine performance and comfort, challenging the notion that supercars had to be as uncomfortable as the Lamborghini Countach of the time. This admiration led him to incorporate similar principles into the F1, making it a car that could be both thrilling and practical. The NSX's influence on the F1 was profound, demonstrating that a supercar could be both a high-performance machine and a reliable daily driver.

Senna's involvement in the NSX project was particularly significant. Known for his uncompromising approach to racing, Senna's feedback helped Honda fine-tune the NSX's handling and performance. The result was a car that was not only fast but also remarkably well-balanced and user-friendly. Murray saw in the NSX a blueprint for what the F1 could achieve: a supercar that didn't require sacrifices in comfort or usability to deliver extraordinary performance.

Record-Breaking Performance

In 1998, the McLaren F1 set the world record for the fastest production car, reaching an astounding top speed of 391 km/h (243 mph), a record it held for many years. This achievement was a testament to the car's engineering and performance capabilities. The F1's blend of innovative design, raw power, and driver-centric focus cemented its status as a legendary supercar.

The record-breaking speed was just one aspect of the F1's performance. Its acceleration was equally impressive, with the car capable of sprinting from 0 to 60 mph in just 3.2 seconds. In addition to its immense speed, the F1's intelligent brake cooling system and fan-assisted underbody downforce effects were also firsts in the automotive industry, contributing to its exceptional handling and stability. These innovations ensured that the car remained planted and controlled, even at high speeds, providing the driver with confidence and precision.

The F1's dominance was not limited to straight-line speed. Its handling characteristics were equally remarkable, thanks to the meticulous attention to detail in its design and engineering. The car's suspension system, developed specifically for the F1, provided a perfect balance between comfort and performance. This allowed the F1 to deliver an engaging driving experience on both the road and the track, making it a true driver's car in every sense of the word.

A Legacy of Uncompromised Excellence

The McLaren F1 is a testament to Gordon Murray's vision of creating the ultimate supercar. Its influence on the automotive industry is undeniable. The F1's legacy is not just about its records or its innovations; it's about the uncompromised pursuit of driving perfection.

Each element of the F1's design was meticulously crafted to enhance the driving experience. From the lightweight materials used throughout the car to the driver-focused cockpit, every detail was considered. The F1 was the first modern supercar to forgo power-assisted steering and brakes, providing a raw and unfiltered connection between the driver and the road. This decision underscored Murray's commitment to delivering a pure driving experience, free from electronic interference.

The influence of the F1 can be seen in countless supercars that followed. The F1's engineering set a new benchmark for what was possible in a road car, pushing other manufacturers to innovate and evolve.

Innovations and Firsts of the McLaren F1

• First carbon fiber monocoque chassis in a production car.
• First central driving position in a production car.
• First active aerodynamics with a rear hydraulic spoiler in a production car.
• First gold-lined engine bay in a production car for heat reflection.
• First modern supercar without power-assisted steering or brakes.
• First large displacement naturally aspirated engine to achieve over 100 hp per liter in a production car.
• First use of intelligent brake cooling in a production car.
• First use of fan-assisted underbody downforce effects in a production car.

The story of the McLaren F1 is a story of breaking the rules, redefining what's possible, and creating a car that stands the test of time. Gordon Murray and the McLaren 4 set out to build the best road car in the world, and in doing so, they created a legend. The F1's influence will continue to be felt for generations to come.
